Outline

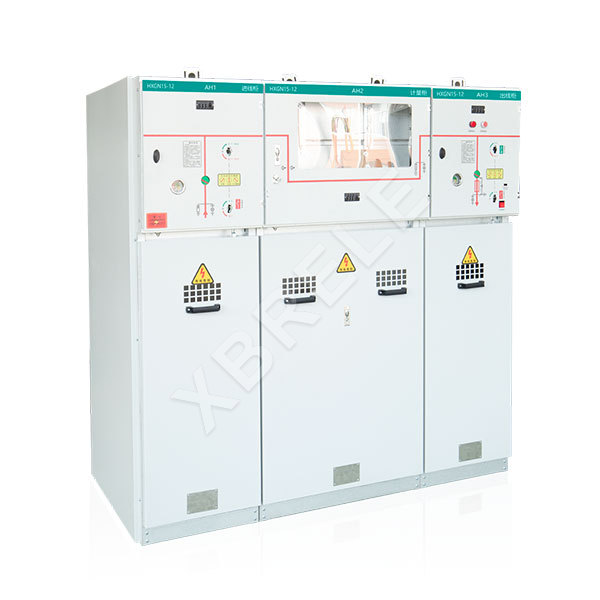

HXGN15-12 box type fixed AC metal enclosed switchgear (hereinafter referred to as ring network cabinet) is a new type of high-voltage electrical product that we have successfully designed and developed in accordance with the requirements of domestic rural power and urban network renovation by introducing excellent foreign technology. All technical performance indicators comply with IEC62271-200:2003 and GB3906 standards.
The main switch, operating mechanism, and components of the ring main cabinet adopt ABB's original components or SFL-12/24 switch equipment assembled and produced domestically using imported components. ABB's original HAD/US SF6 can also be equipped according to user needs. Circuit breaker or VD4-S vacuum circuit breaker. Its operation methods are divided into two types: dynamic and electric.
The cabinet body is riveted after being processed by CNC machine tools, with a protection level of IP3X, and has reliable mechanical interlocking and anti misoperation functions. This product has significant characteristics such as small size, light weight, beautiful appearance, easy operation, long service life, high parameters, no pollution, and less maintenance.
The HXGN15-12 box type fixed AC metal enclosed switchgear is suitable for receiving and distributing electrical energy in AC 50Hz and 12kV power networks. The main switch inside the cabinet is the SF6 switch.

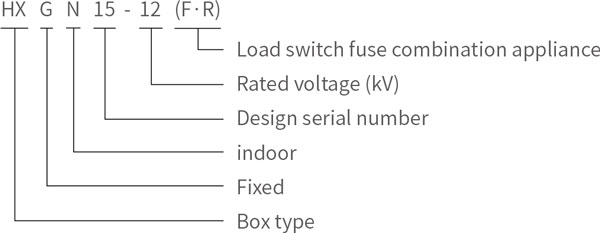

Model Meaning

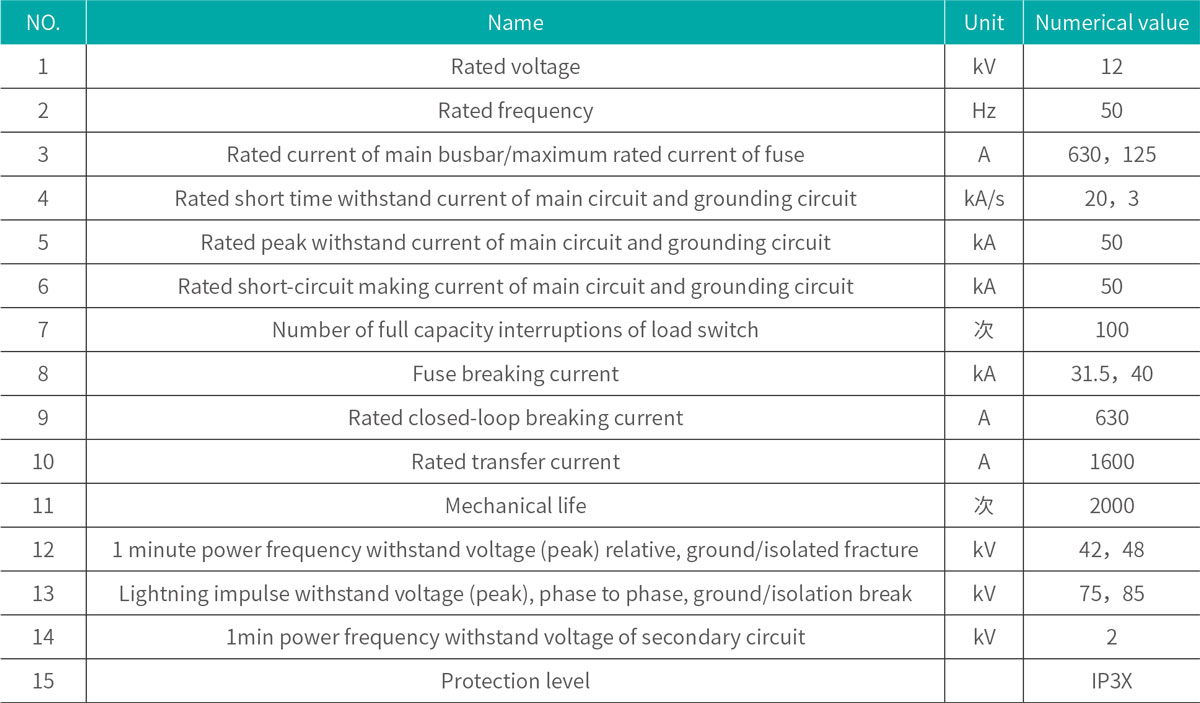

Main Technical Parameters of Vacuum Circuit Breaker
