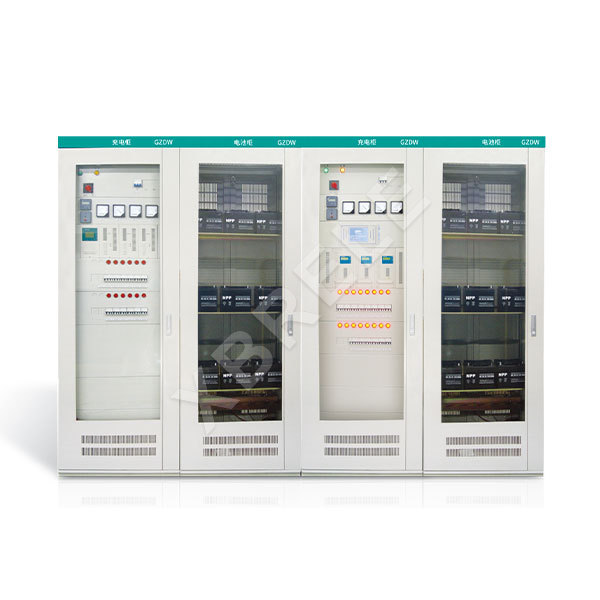

Overview
This new generation of microcomputer controlled direct-current power supply panel GZDW/GZTW series adopts integrated module structure, is mainly composed of monitoring module, rectifier module, insulated monitoring module, battery inspection module,AC/DC monitoring module, switching value monitoring module, step-down module, distribution unit, storage battery and cabinet body, is featured with flexible configuration, stable performance, friendly interface, simple operation, intellectualized management, etc. The products are widely applied to various power plants, transformer substations, mobile communication station, industrial and mining enterprises, electrified railways, airports, havens, high-rise buildings, residential areas, etc, also can be used as operating and control source of high-voltage switch, electromechanical protection, automatic device, communication equipment, SPC exchange, electric carrier and other equipment.

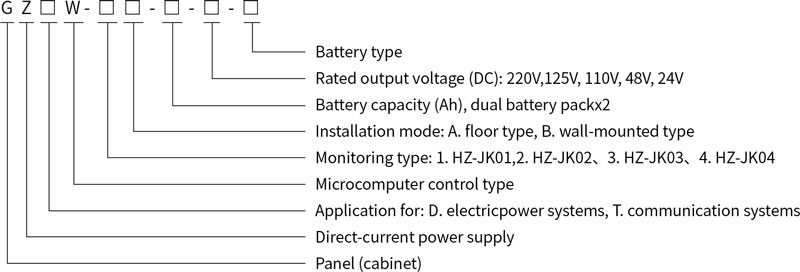

Model and Meaning
Industry Standard
DL/T459-2000 Specifications of D.C supply cabinet in power system
DL/T637-1997 Specification for order of the valve regulated sealed lead-acid batteries
DL/T724-2000 Specification of operation and maintenance of battery DC power supply equipment for electric power system
DL/T781-2001 High frequency switching converter module in power system
DL/T856-2004 DC electrical source supervisor for electric power
DL/T857-2004 Specification of rectification inversion equipment for battery of power plant and substation
DL/T5044-2004 Technical code for designing DC system of power projects
DL/T5120-2000 DC System design code for small electric power project
Scope of Application
This microcomputer controlled direct-current power supply panel RZ-GZDW-1/2/3/4 is an integrated power supply panel especially designed for users of different capacity. The system is mainly composed of monitoring module, rectifier module, AC/DC monitoring module, insulated monitoring module, battery inspection module, switching value monitoring module, step-down module, is featured with stable performance, friendly interface, simple operation, intellectualized management, etc.The products are applicable to transformer substations of different voltage class, power plants, industrial and mining enterprises, electrified railways, high-rise buildings,etc, also can be used as operating and control source of high-voltage switch, relay protection and automatic device.

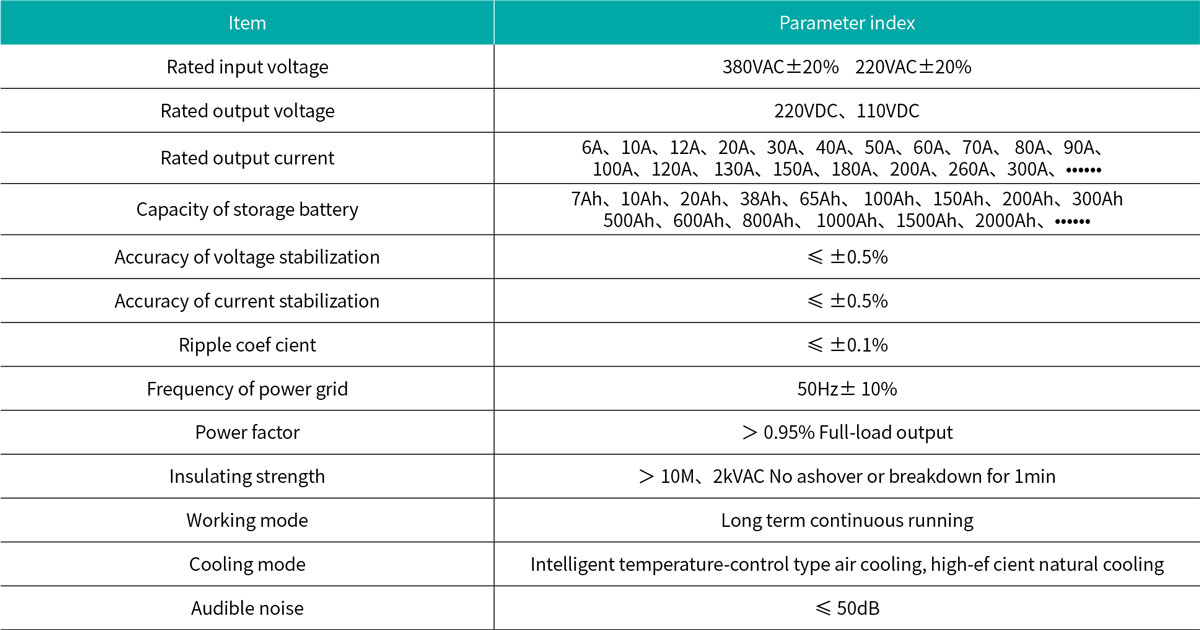

The Main Technical Parameters
